Triumph Unit 650 top end gasket kit 1967-1970
Triumph Unit 650 top end gasket kit 1967-1970
F/G Global Sealant Division

Triumph Unit 650 top end gasket kit 1967-1970

Regular price $46.28 $0.00
Shipping calculated at checkout.
This kit is designed to service the top end on 1967 to 1970 650 Triumph engines with 4 inspection cap rocker boxes. The base gasket has a hole for the pressurized oil feed. This gasket set has been carefully manufactured with the highest quality materials and technology currently available.

Triumph 650 Unit 650 1967-1970 TOP END GASKET KIT

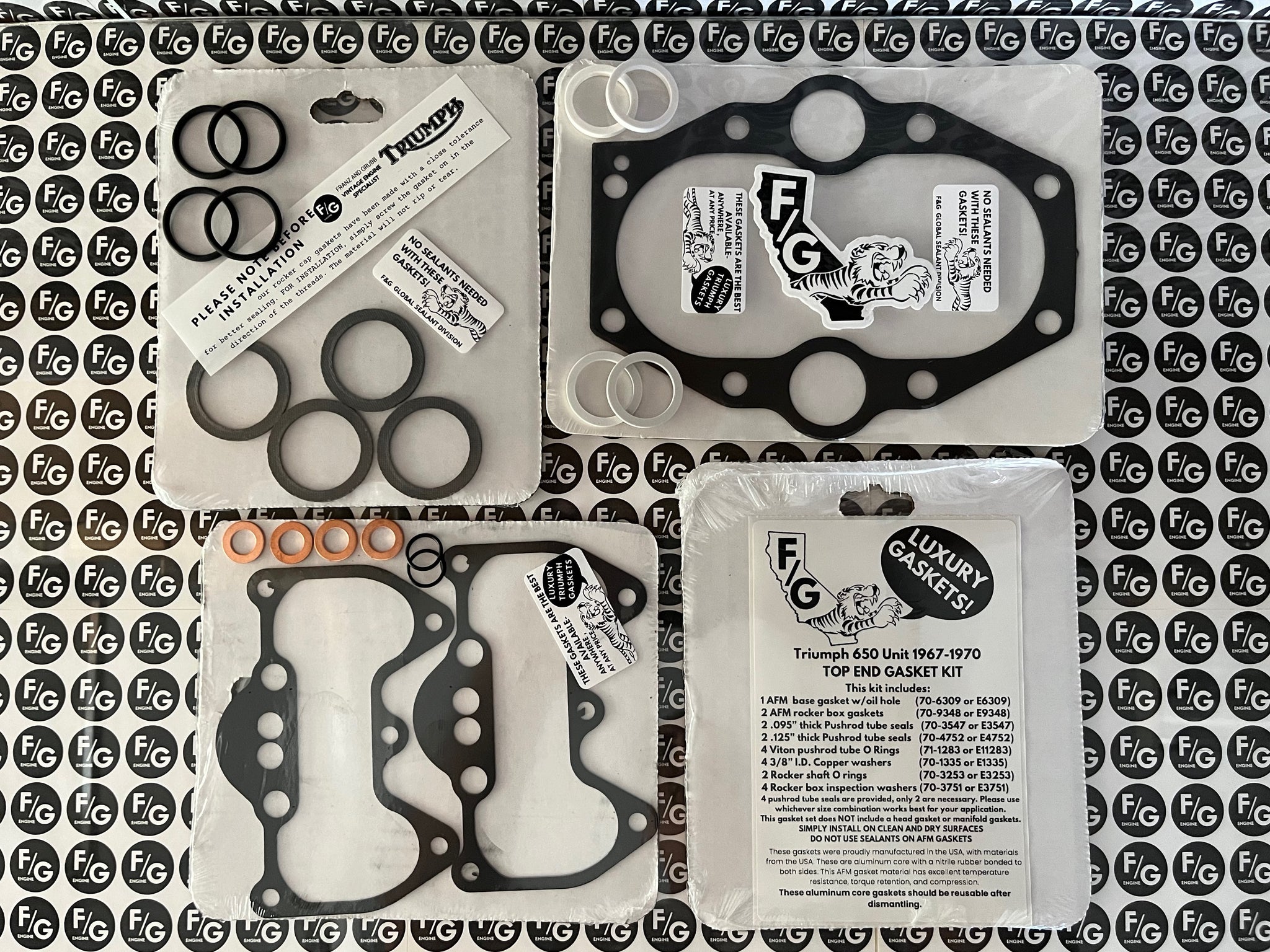

This kit includes:

1 AFM 650 base gasket     (70-6309 or E6309)

2 AFM rocker box gaskets (70-9348 or E9348)

4 Viton pushrod tube O Rings (71-1283 or E11283)

2 .095” thick Pushrod tube seals (70-3547 or E3547)

2 .125” thick Pushrod tube seals (70-4752 or E4752)

4 3/8” I.D. Copper washers (70-1335 or E1335)

2 Rocker shaft O rings (70-3253 or E3253)

4 Rocker box inspection washers (70-3751 or E3751)

4 pushrod tube seals are provided, only 2 are necessary. Please use whichever size combination works best for your application.

This gasket set does NOT include a head gasket or intake manifold gaskets, you can add one in the menu above if necessary.

These gaskets were proudly manufactured in the USA, with materials from the USA by Cleveland Gasket®. These are aluminum core with a nitrile rubber bonded to both sides. This AFM gasket material has excellent temperature resistance, torque retention, and compression.

No sealant of any type is needed, and due to the high rate of recovery when disassembled, in most cases the gaskets can be reused.

There will be no pink, green, or blue gasket material hanging over the edge of your rocker box. There will be no drama or discussion about which sealant to use and how to apply it.

These AFM rocker box gaskets are .032" thick replace Triumph part # 70-9348 or E9348, the AFM base gasket replaces Triumph part # 70-6309 or E6309, and the optional head gasket is part E4547 or 70-4547.
