Triumph Hepolite 650 iron head 6T T110 piston and ring kit

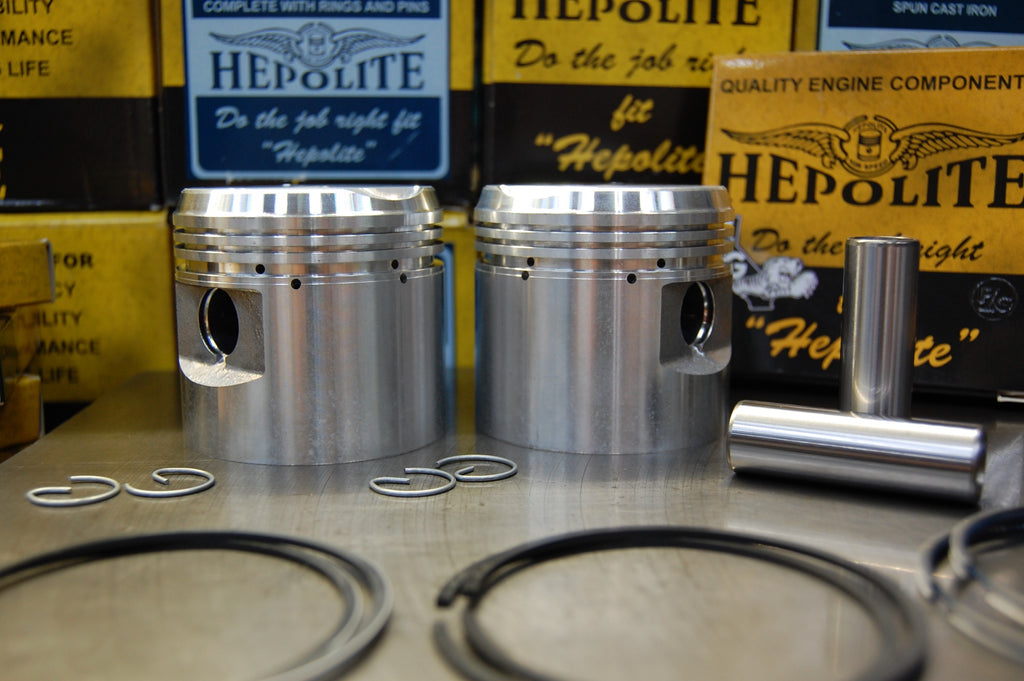

This Hepolite kit includes everything you need to take your 650 iron head cylinder to the next size. Low compression pistons, wrist pins, circlips, and the most modern and high quality ring set available today.
This 7:1 compression Triumph piston is a replica of the pistons originally fitted as OEM to 6T Thunderbird and T110 Trophy models with an iron head. These pistons are manufactured by JCC and the rings are exclusively made in England for Hepolite. This premium ring set includes a two piece oil control ring with a coil spring. This modern ring design is far superior than one piece designs, and is easier to install than 3 piece oil rings.
This set is for 650cc with a 2.795" standard bore ( 71mm ), available in standard, .020", .040", and .060" oversizes only.
( If you need higher compression 650 pistons, click here )
This piston set is lighter in weight than the 9:1 650 pistons by approximately 40g each.
Replaces Triumph part number E2891 or 70-2891, also CP98, used from 1950-1961 on all 6T and T110 engines with an iron head, both 4 or 5 fin.
We include installation sheets.
Instead of the typical and lame "refer to your manual" we include our own installation notes written by an experienced engine builder which will help both the installer and/or the machinist doing the work. These include recommended clearances and suggested ring gaps that have been successfully used at our shop on street and racing engines. Our extensive installation notes should answer any questions you might have about these piston rings.
What if the piston is too small?
Sometimes the machine shop will not be able to clean up the bore for your piston size. This is because a + .020" piston will only take .010" off per side, and the cylinder may also be worn or have a taper. You can exchange any piston set from our shop with another size should you ever discover this is the case, as long as the rings have not been file fit or pistons modified. No problem.
Hepolite pistons are only available supplied with Hepolite rings, although rings may be purchased separately by clicking here.
